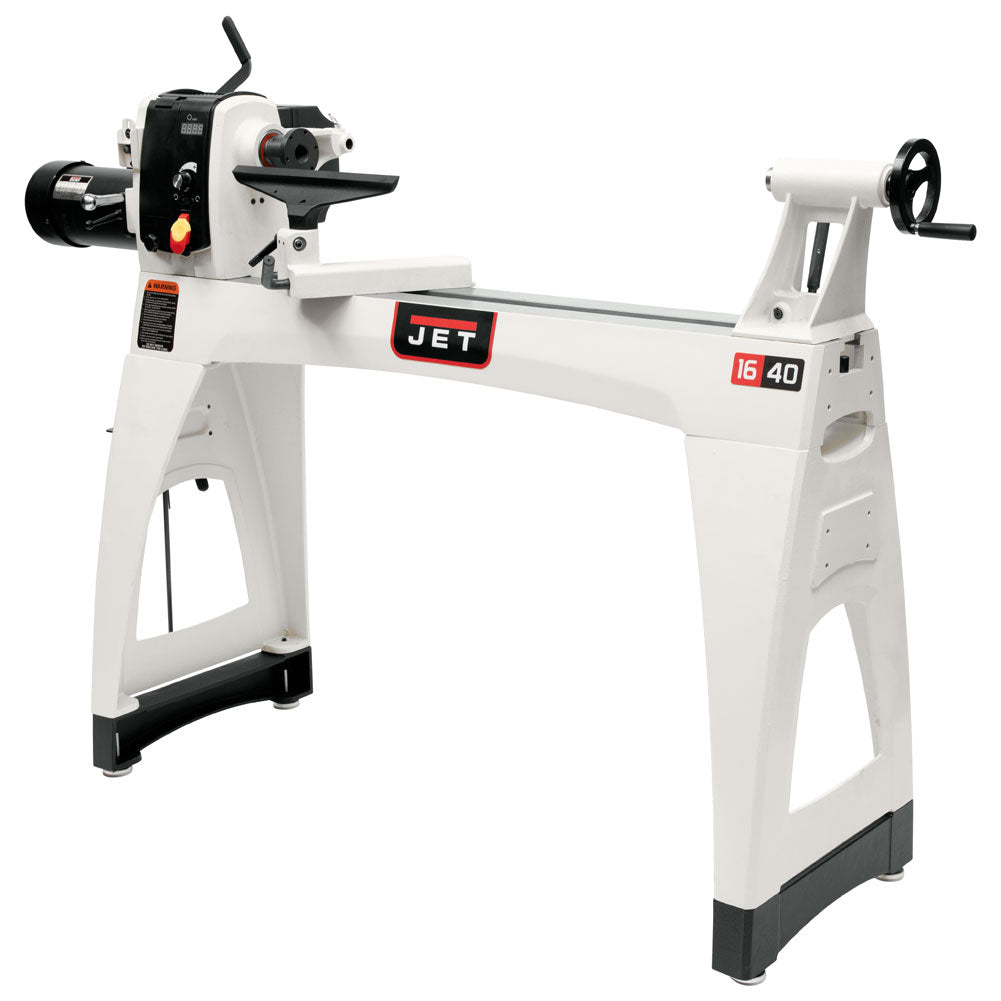

JET 1640 EVS Lathe

The JET JWL-1640EVS Wood Lathe is loaded with cutting-edge features that distinguish it from others in its class. Included is a sliding headstock, electronic infinitely variable speed from 40-3,200 RPM, and a newly designed headstock locking handle.

• Sliding headstock
• Extended spindle nose houses dual headstock spindle bearings
• Improved tailstock quill locking mechanism incorporates an anti-rotation key
• Tailstock features Acme threads for smooth and durable movement
• Banjo uses non-marring, positive locking wedge system to securely hold tool post
• Tool post locking mechanism designed for year of consistent strength
• Spindle lock latch frees up both hands
• Electronic infinitely variable speed from 40-3,200 RPM
• 36 integrated indexing positions
• Newly designed headstock locking handle accessible from front of lathe
• Convenient leg-mounted tool holder
• Inverter is enclosed for added protection
• E Drive Inverter features a built in EMI filter
• Conveniently located digital readout
• Rubber tool mat on top of headstock

Specifications:

• Swing Over Bed: 16-1/2"
• Swing Over Tool Rest Base: 12-7/8"
• Distance Between Centers: 40"
• Spindle Height: 44-1/2" from floor
• Spindle Bore: 5/8"
• Tailstock Bore: 3/8"
• Spindle Taper: 2MT
• Quill Taper: 2MT
• Quill Travel: 4-1/4"
• Spindle Thread: 1-1/4" x 8 TPI
• Spindle Speeds: High range 120-3,200 rpm; Low range 40-1,200 rpm
• Speed Range: 40-3,200 rpm
• Number of Indexing Positions: 36
• Bed Construction: Cast Iron
• Motor: 1-1/2 HP
• Voltage: 115 V
• Recommended Circuit Size: 20 Amps
• Net Weight: 375 lbs
• Shipping Weight: 440 lbs

Standard Accessories:

• 14" Tool Rest
• Tool Rest Extension
• 3" Faceplate
• Faceplate Wrench
• 4-Prong Drive Center
• Live Center
• Revolving Cone Center
• Knockout Rod
