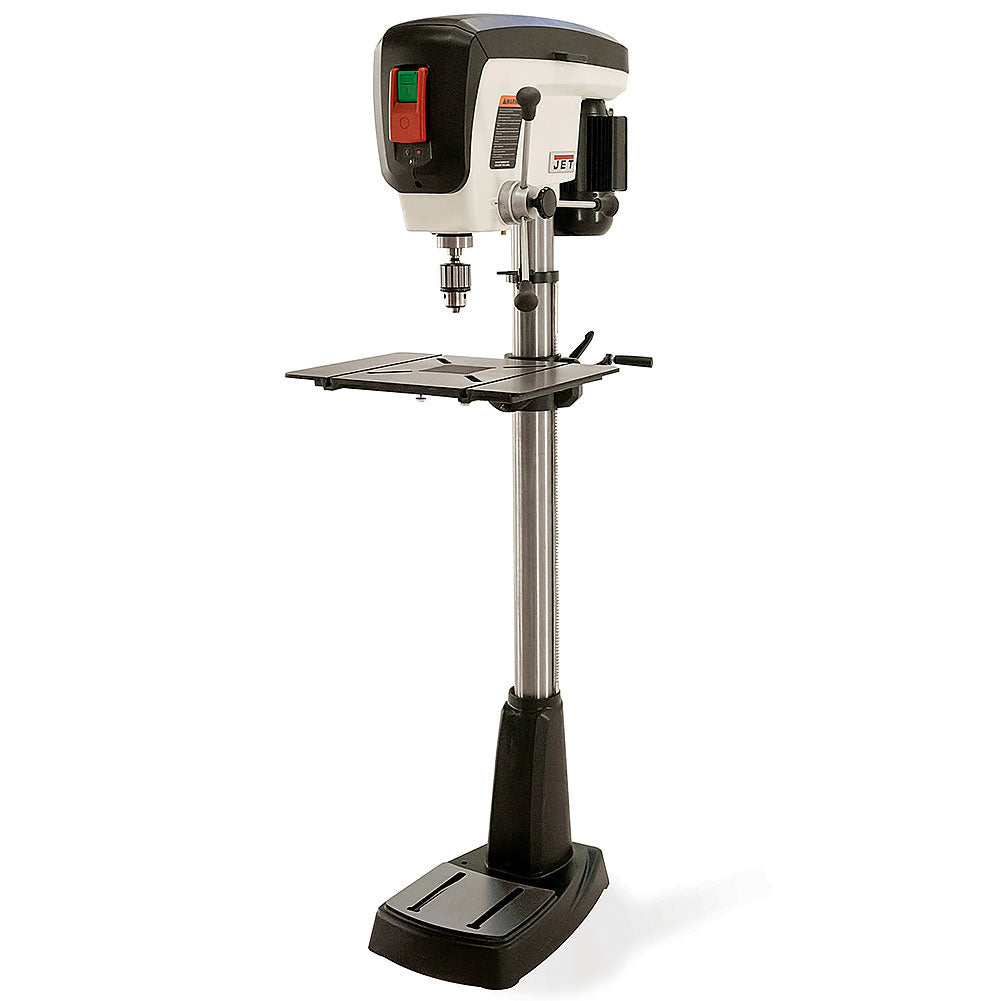

Introducing the new JET JDP-17, 17" Drill Press. From a full 5" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.

• Spindle travels a full 5" with one revolution of the handle
• Large 14" x 19" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• CSA Certified

Specifications:
Swing: 16-7/8"
Spindle Travel: 5"
Number of Spindle Speeds: 16
Spindle Speed Range: 210 - 3500 RPM
Spindle Distance to Table Max: 30"
Table Size: 14" x 19"
Table Tilt: 90 Left and Right
Chuck Distance to Base: 42-7/8"
Chuck Distance to Table: 25-7/8"
Chuck Size: 5/8"
Column Diameter: 3-5/32"
Base Size: 20" x 12-5/8"
Motor Power: 3/4 HP
Motor Voltage: 115
Motor Amps: 6.8
Weight: 187 lbs

JET part # 716300
