Powermatic Turbo Cone Dust Collector 1-3/4 HP PM1300TX-CK

Powermatic SKU: 1054590001
Powermatic Turbo Cone Dust Collector 1-3/4 HP PM1300TX-CK

Powermatic Turbo Cone Dust Collector 1-3/4 HP PM1300TX-CK

Powermatic SKU: 1054590001
Regular price $1,199.99
  • FREE Shipping! Item ships from manufacturer
  • Satisfaction Guaranteed
  • 90 Day Returns

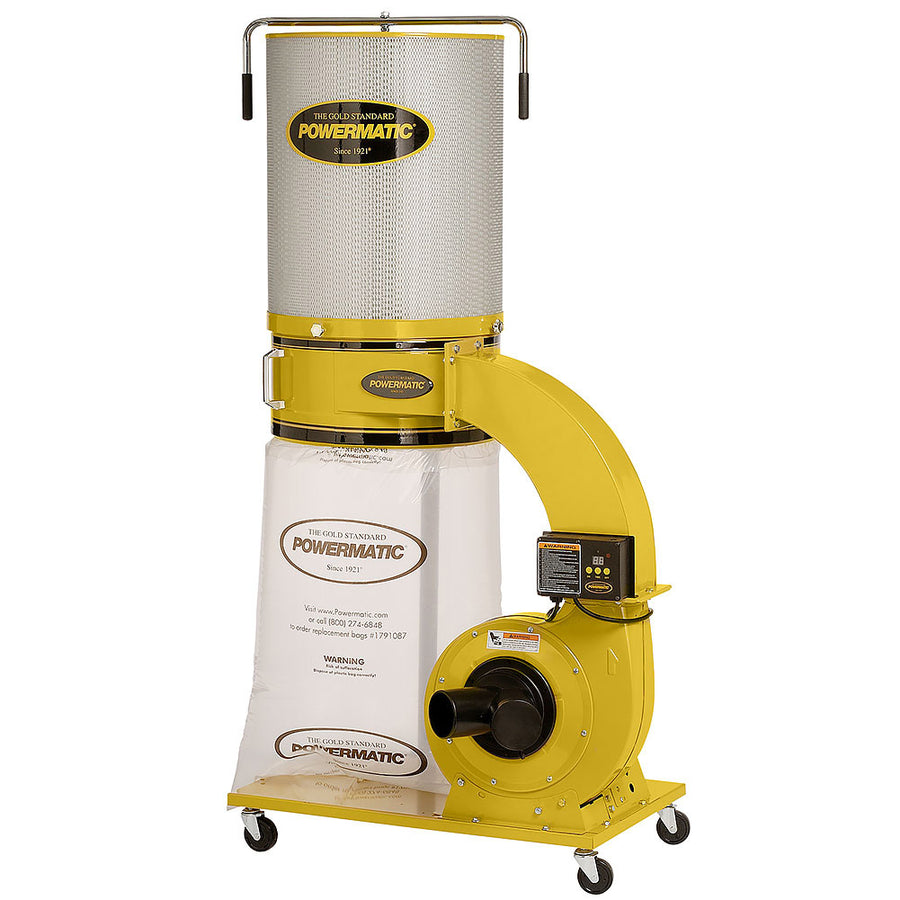

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

  • TurboCone improves chip separation and collector bag packing efficiency
  • The cone eliminates premature filter clogging for sustained performance
  • Remote-controlled digital timer can be programmed for up to 99 minutes
  • Canister filter offers over six times filtering surface area of standard bags
  • All-metal duct construction for rigidity and improved air flow
  • Dual 4" dust ports for simultaneous collection from two machines
  • 1-3/4HP motor offers plenty of power for effective air movement
  • Collection bag uses a snap ring for rapid installation and removal
  • 10 cubic feet capacity collection bag reduces number of bag changes.
  • Four swivel casters for easy maneuverabilty

Air Flow @ 6": 1,064 CFM
Number of Air Inlets: 3
Efficiency: 2 Micron
Static Pressure: 11.31"
Sound Rating: 75 - 90 db
Bag Diameter: 20"
Collection Bag Capacity: 10 cu/ft
Collection Bag Length: 30"
Filter Bag/Canister Length: 26"
Impeller Diameter: 12"
Impeller Material: Steel
Velocity @ 6": 5,374 CFM
1-Hose Connection Diameter (In.) 6
2-Hoses Connection Diameter (In.) 4
Motor Power: 1-3/4 HP
Motor Voltage: 115/230
Prewired Voltage: 115
Motor Amps: 15/7-1/2

Powermatic stock number 1791079K
