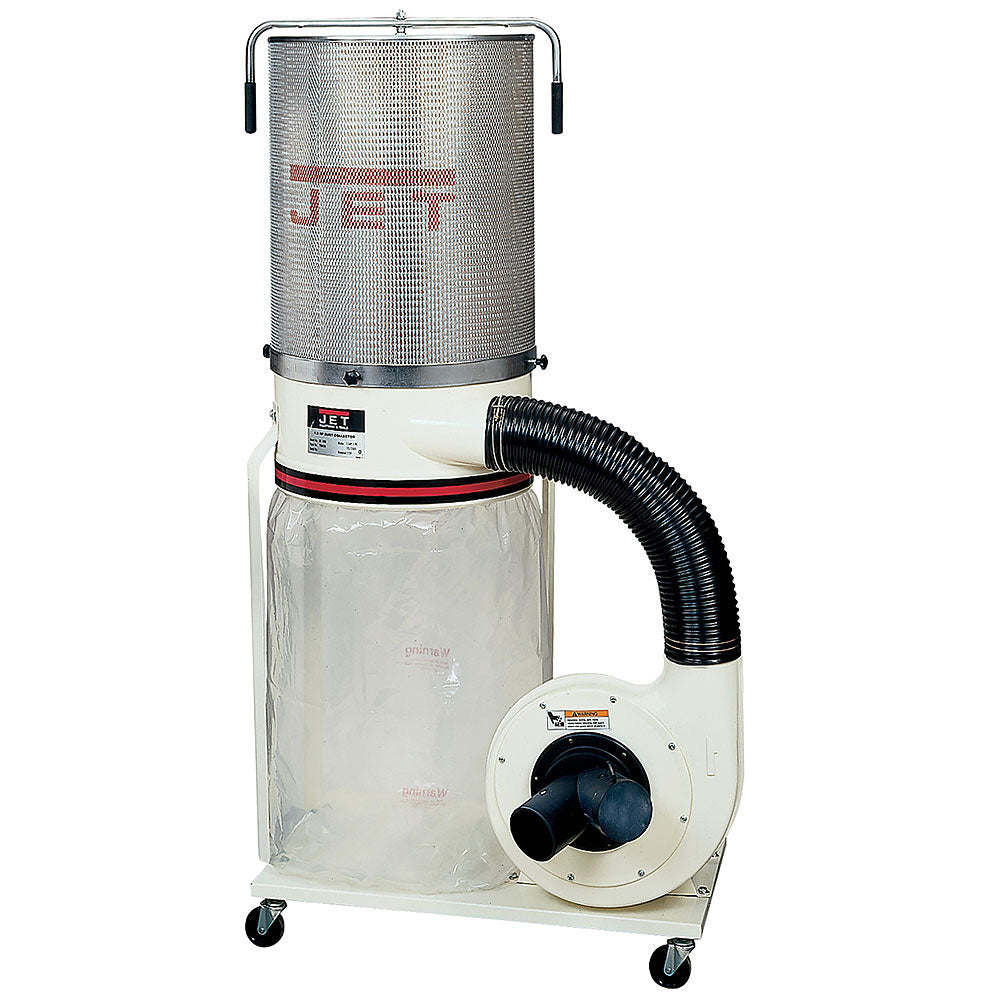

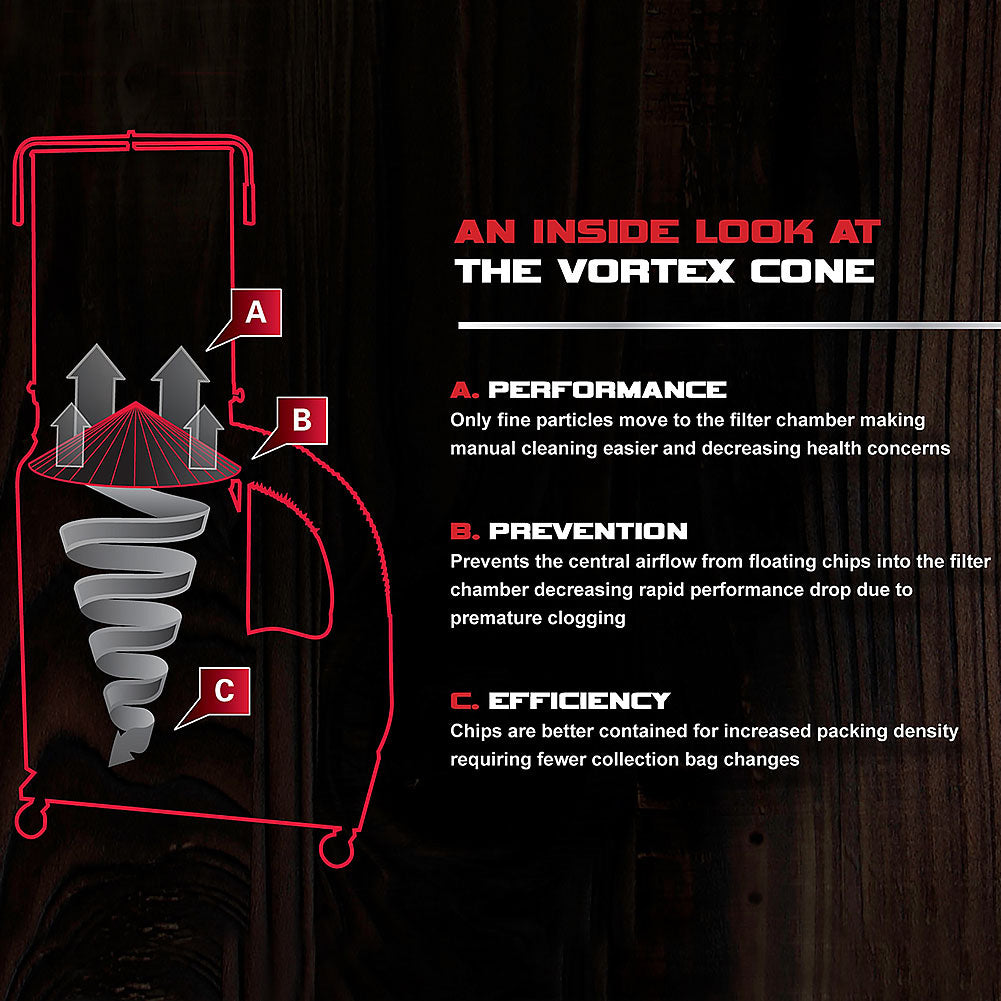

The JET DC-1100VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
- Vortex Cone improves chip separation and collector bag packing efficiency
- Eliminates premature filter clogging for sustained performance
- Single-stage design for economical and quiet operation
- Industrial controls designed for years of trouble-free use
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- High air velocity (CFM) design stands up to any competitive specifications
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Includes four casters for maneuverability and total portability
Specifications:Air Flow @ 4": 1100 CFM
Static Pressure: 10-1/2"
Number of Air Inlets: 1 at 6" or 2 at 4"
Efficiency: 2 Micron
Sound Rating: 70 - 80 db
Bag Diameter: 20"
Collection Bag Capacity: 5.3 cu/ft
Collection Bag Length: 29"
Filter Canister Length: 25"
Impeller Diameter: 11"
Impeller Material: Steel
Motor Power: 1-1/2 HP
Motor Voltage: 115/230
Motor Amps: 11/5.5
JET part # 708659K
