Vicmarc VM120/150 Dovetail Jaws

Vicmarc’s VM120/150 Dovetail Jaws deliver the same trusted two-way chucking system found across the Vicmarc® lineup, scaled up for larger bowls, platters, and vessels. Interior dovetails clamp onto a tenon in compression mode, while exterior dovetails press outward into a recess for expansion mode, giving you flexibility no matter how you prefer to prep your workpiece.

Every set is machined from steel and finished in black oxide coating for lasting durability on the lathe.

With eight sizes available, you can outfit your VM120 or VM150 chuck for anything from mid-size bowls to large platters and vessels. All sets below fit both the VM120 and VM150 Chucks. Not for use with VM100 Chucks.

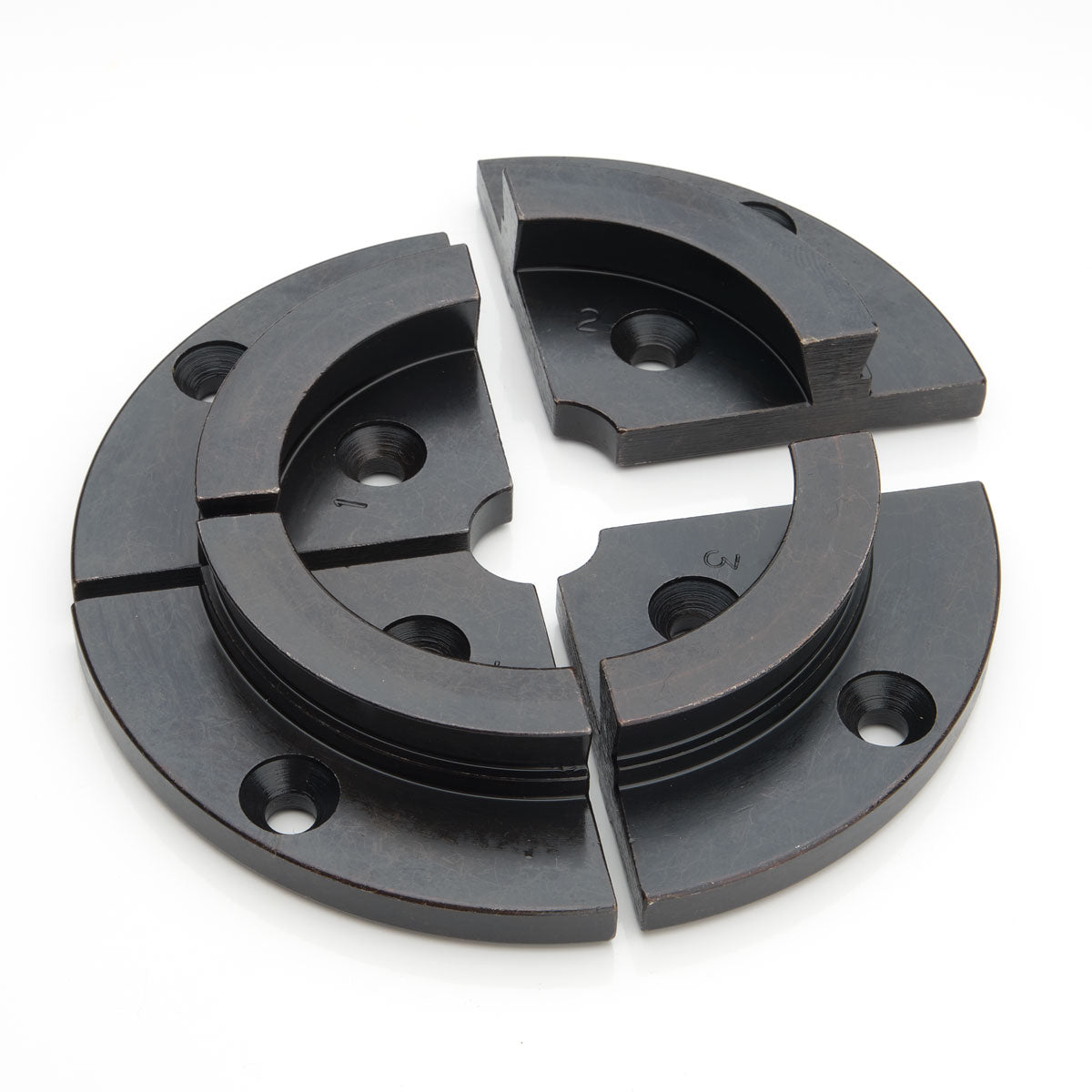

85mm Dovetail Jaw Set

A strong starting point for mid-size bowl work.

• Durable machined steel

• Black oxide finish

• Compression range: 64mm (2-1/2”) to 102mm (4”)

• Expansion range: 85mm (3-5/16”) to 133mm (5-1/4”)

• Fits VM120/VM150 Chucks. Not for use with VM100 Chuck.

89mm Dovetail Jaw Set

Offers a broader compression range than the 85mm set, useful when your tenon sizes vary from piece to piece.

• Durable machined steel

• Black oxide finish

• Compression range: 48mm (1-7/8”) to 96mm (3-3/4”)

• Expansion range: 68mm (2-5/8”) to 116mm (4-1/2”)

• Fits VM120/VM150 Chucks. Not for use with VM100 Chuck.

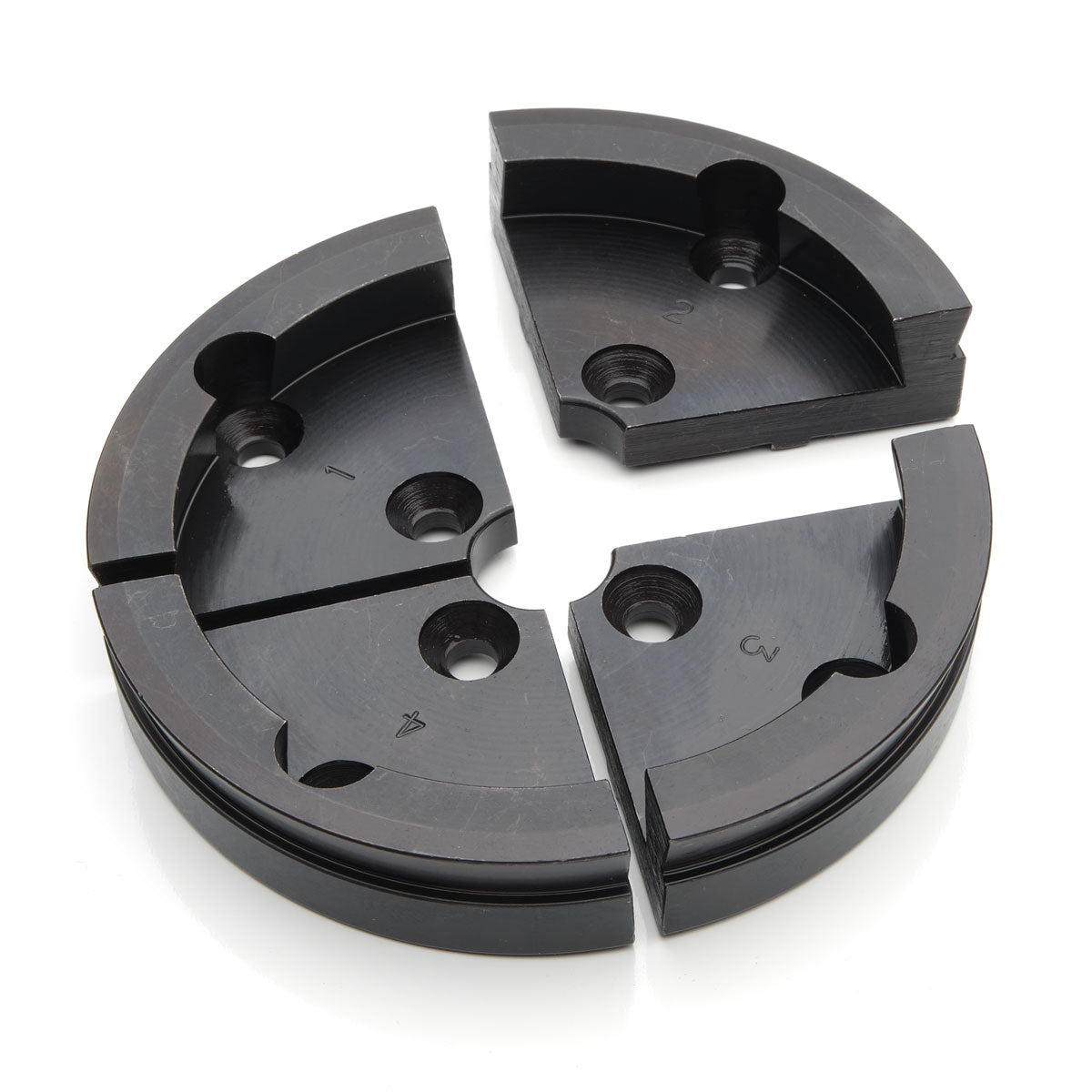

105mm Dovetail Jaw Set

Steps up in scale for larger bowls without sacrificing the grip you’d get from a smaller set.

• Durable machined steel

• Black oxide finish

• Compression range: 84mm (3-5/16”) to 132mm (5-3/16”)

• Expansion range: 105mm (4-1/8”) to 153mm (6”)

• Fits VM120/VM150 Chucks. Not for use with VM100 Chuck.

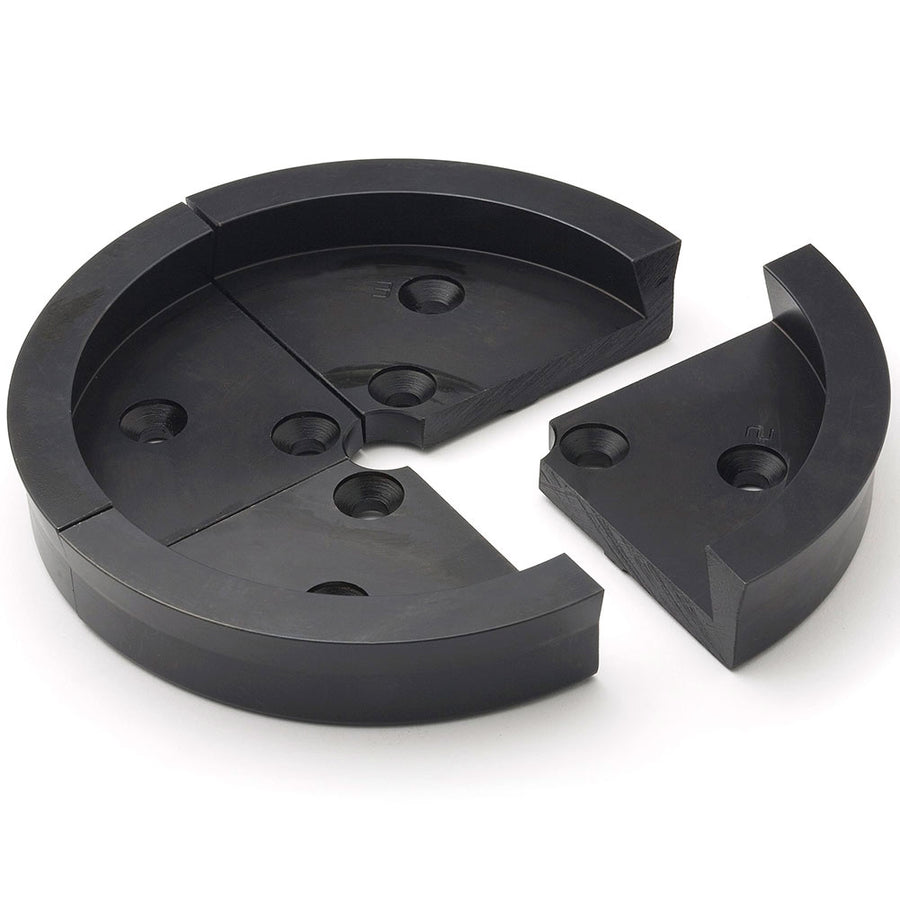

128mm Dovetail Jaw Set

Handle larger platters and deeper bowls where extra jaw diameter keeps the workpiece centered and secure.

• Durable machined steel

• Black oxide finish

• Compression range: 106mm (4-1/8”) to 154mm (6”)

• Expansion range: 128mm (5”) to 176mm (6-7/8”)

• Fits VM120/VM150 Chucks. Not for use with VM100 Chuck.
