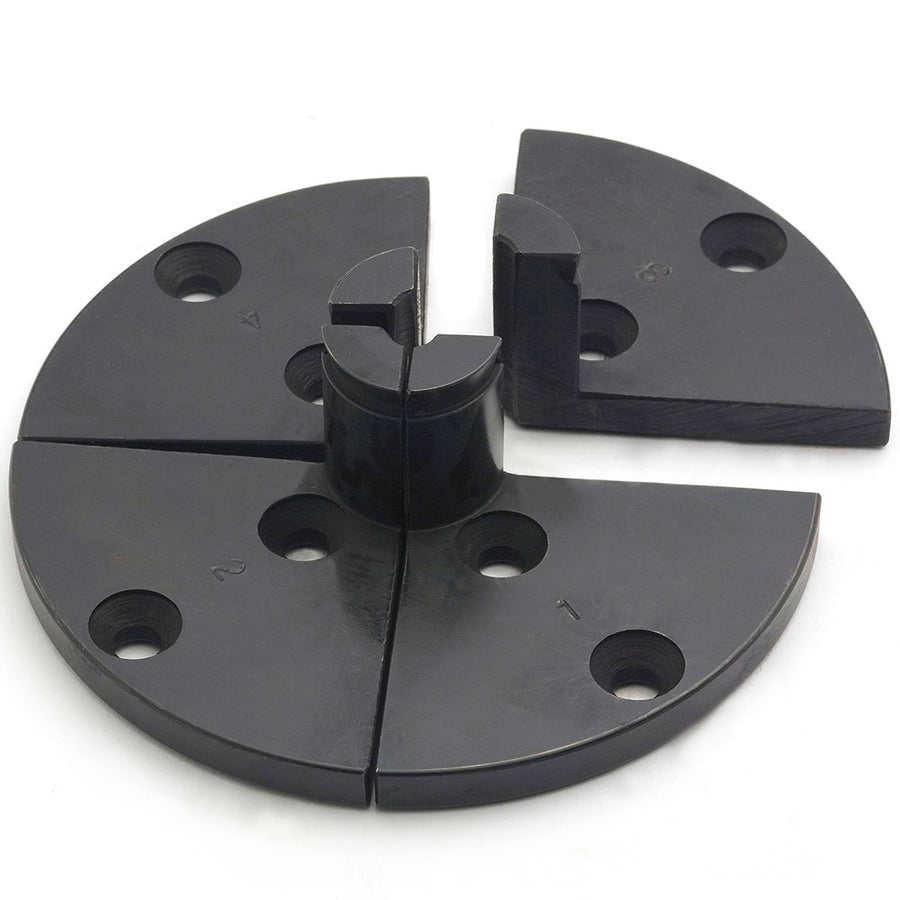

Vicmarc VM120/150 Pin Jaws

Vicmarc’s Pin Jaws bring precision chucking to the VM120/150 lineup, built for small-diameter tenons and recesses that fall outside the range of the standard Dovetail or Shark Jaws. Finials, ornaments, and other fine detail work call for a jaw that can hold securely without the bulk of a larger set. Each Pin Jaw set clamps onto a tenon in compression mode or expands into a small recession expansion mode, giving you the same two-way flexibility found throughout the VM120/150 range.

Two sizes are available, both fitting the VM120 and VM150 Chucks. Not for use with VM100 Chucks.

25mm Pin Jaw Set

Best suited to the smallest tenons and recesses, making it a natural fit for delicate spindle work and miniature pieces.

• Durable machined steel

• Black oxide finish

• Compression range: 6mm (1/4”) to 54mm (2”)

• Expansion range: 25mm (1”) to 73mm (2-7/8”)

• Fits VM120/VM150 Chucks. Not for use with VM100 Chuck.

35mm Pin Jaw Set

Extends the expansion range slightly beyond the 25mm set, useful for small ornaments that need a touch more room.

• Durable machined steel

• Black oxide finish

• Compression range: 6mm (1/4”) to 54mm (2”)

• Expansion range: 35mm (1-3/8”) to 83mm (3-1/4”)

• Fits VM120/VM150 Chucks. Not for use with VM100 Chuck.
